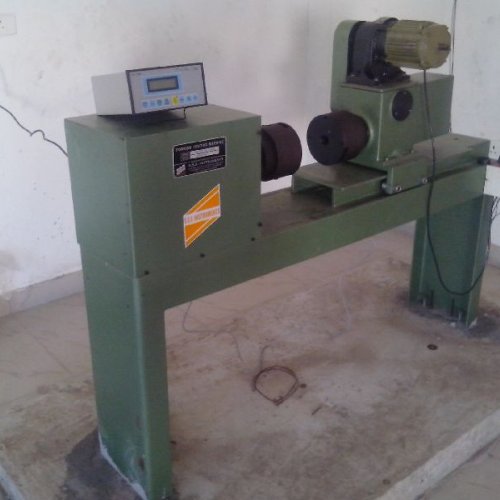

Triple S offer Torsion Testing Machine (SSS-TT), which are designed to check tensional property of various metal wires, tubes and bars. Further, we also calibrate these machines as per the latest and relevant industry standards.
Features
Technical Specifications Torsion Testing Machine
MODEL | SSS-TT-6 | SSS-TT-10 | SSS-TT-20 | SSS-TT-50 | SSS-TT-100 | SSS-TT-200 | SSS-TT-300 | SSS-TT-600 |
CAPACITY KG-M | 6 | 10 | 20 | 50 | 100 | 200 | 300 | 600 |
RANGES KG-M | 6 & 3 | 10, 5 & 2 | 20, 10 & 5 10 & 5 |
50, 25 25 & 10 |
100, 50 50 & 20 |
200, 100 60 & 30 |
300, 150 150 & 60 |
600, 300 |
NO. OF DIVN. ON DIAL | 600 | 500 | 500 | 500 | 500 | 500 | 600 | 600 |
TORSION SPEDD & DIRECTION | FIXED ONE WAY | FIXED REVERSE | FIXED REVERSE | FIXED REVERSE | FIXED REVERSE | FIXED REVERSE | FIXED REVERSE | FIXED REVERSE |
CLEARANCE BETWEEN GRIPS (MM) | 0-400 | 0-420 | 0-450 | 0-500 | 0-600 | 0-1000 | 0-1000 | 0-1500 |
GRIPS FOR ROUND BARS DIA (MM) | 41741 | 41741 | 41840 | 41942 | 13058 | 20-50 | 30-60 | 40-70 |
GRIPS FOR FLAT BARS (MM) | 41644 | 41678 | 41708 | 41771 | 41774 | 41932 | 15-25 | 25-40 |
WIDTH (MM) | 25 | 25 | 30 | 40 | 50 | 60 | 60 | 70 |
MOTOR 3PH | 0.5 | 0.5 | 0.5 | 2 | 2 | 3 | 5 | 7.5 |
