Brinell Hardness Testing Machines
Leading Manufacturers, Exporters and Wholesaler of Touch Screen Brinell Hardness Testing Machine, Computerised Brinell Hardness Testing Machine, SSS-B-3000-O Brinell Hardness Testing Machine, SSS-B-3000-H Brinell Hardness Testing Machine and SSS-B-3000-J Brinell Hardness Testing Machine from Kolhapur.
| Business Type | Manufacturer, Exporter, Supplier |
 View |
|
| Specialities | Easy To Use, Electrical Porcelain, Proper Working, Water Proof, High Strength |
| Display Type | Touch Screen |
| Operating Type | Automatic |
| Packaging Type | Available In Many Colour |
| Driven Type | Electric |
| Material | Metal, MS, SS |
| Total Load (kgf) | 500 to 3000 in Stages of 250 Kgf |
| Magnification of Objectives | 4x |
| Max.Test Height (mm) | 380 |
| Scale Least Count (mm) | 0.01 |
| Throat Depth (mm) | 200 |
| Machine Dimensions (approx.) Mm | L 1025 X W 645 X H 1178 |
| Weight (approx.) (kg) | 450 |
| Power Supply (V/Cy/Ph) | 415/50/3 |
| Measurement Range (mm) | 1-6 |
Features -:

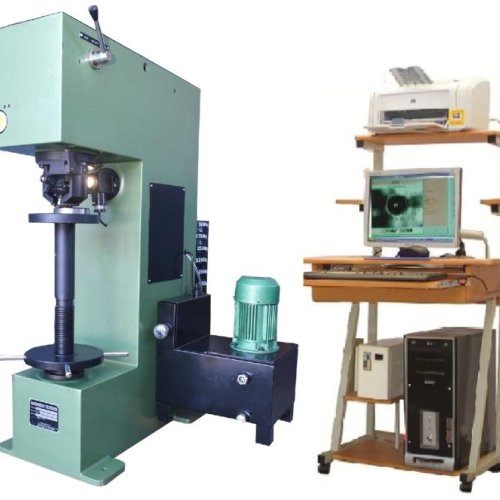

- Fully Computerised (PC Based) Brinell Hardness Tester.
- Direct and accurate measurement of Brinell Hardness Number using "State of Art" image processing technology.
- 'Wide Testing Range' : from soft metal to medium hardness steels.
- High accuracy and repeatability of measurement at all loads.
- Faster measurement yielding to higher productivity.
- Hydraulic loading and unloading cycle.
- Advanced Window based software.
- Latest GUI Features
- User friendly software with all help file and Windows Features.
Online indentation setting and focusing on PC monitor :
- Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen.
- Batch file Processing
- Option for data/storage and reports generation.
Statistical Evaluation : Software for calculating standard deviation, mode medium, histogram etc.
Wide options in calibration mode :
- Extensibility for future advanced image processing analysis requirements.
- 'SSS' Touch Screen Brinell Hardness Tester, Model SSS-B-3000-TS is a simple and a accurate means to produce automatically measures the ball indentation to give Brinell hardness number. These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed. These testers strictly confirm to IS:2281, BS:10003-2 and ASTM E-10.
Construction :
The robust machine frame is designed to accommodate the high precision loading system and an optical device with CCD camera. Specimen is placed on a testing table and brought in contact with clamping cone. Load/Unload/Read operations are done through a 3-position hand lever. The image is digitized using a CCD camera fitted on the optical device and is captured by the Touch Screen Laptop/Tablet. The diameters of the indentation are directly measured by Pc to give the Brinell Hardness Number directly.
NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| Business Type | Manufacturer, Exporter, Supplier |
| View |
|
| Application | Testing Material |
| Display Type | Mechanical / Automatic |
| Country of Origin | 220V, 380V |
| Power | 1-3 Kw |
| Driven Type | Electric |
| Total Carbohydrate | 1 Year |
| Total Load (kgf) | 500 to 3000 in stages of 250 kgf |
| Magnification of Objectives | 4x |
| Max. Test Height (mm) | 380 |
| Scale least Count (mm) | 0.01 |
| Throat Depth (mm) | 200 |
| Machine Dimensions (Approx.) mm | L 1025 x W 645 x H 1178 |
| Weight (Approx.) (kg) | 450 |
| Power Supply (V/Cy/Ph) | 415/50/3 |
| Measurement Range (mm) | 1-6 |
| Weight | 200-500 Kg |
| Automation Grade | Manual / Hydraulic |
Features
- Fully Computerised (PC Based) Brinell Hardness Tester.
- Direct and accurate measurement of Brinell Hardness Number using "State of Art" image processing technology.
- 'Wide Testing Range' : from soft metal to medium hardness steels.
- High accuracy and repeatability of measurement at all loads.
- Faster measurement yielding to higher productivity.
- Hydraulic loading and unloading cycle.
- Advanced Window based software.
- Latest GUI Features
- User friendly software with all help file and Windows Features.
Online indentation setting and focusing on PC monitor.
- Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen.
- Batch file Processing
- Option for data/storage and reports generation.
Statistical Evaluation : Software for calculating standard deviation, mode medium, histogram etc.
Wide options in calibration mode.
- Extensibility for future advanced image processing analysis requirements.
- 'SSS' Computerised Brinell Hardness Tester, Model SSS-B 3000-PC is a simple and a accurate means to produce automatically measures the ball indentation to give Brinell hardness number. These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed. These testers strictly confirm to IS:2281, BS:10003-2 and ASTM E-10.
Construction
The robust machine frame is designed to accommodate the high precision loading system and an optical device with CCD camera. Specimen is placed on a testing table and brought in contact with clamping cone. Load/Unload/Read operations are done through a 3-position hand lever. The image is digitized using a CCD camera fitted on the optical device and is captured by the PC. The diameters of the indentation are directly measured by Pc to give the Brinell Hardness Number directly.
NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| Business Type | Manufacturer, Exporter, Supplier |
| View |
|
| Display Type | Mechanical |
| Country of Origin | 220V / 380V |
| Power | 1-3kw |
| Driven Type | Electric |
| Total Carbohydrate | 1year |
| Usage | Testing Material |
| Automatic Grade | Manual / HydraulicWeight |
| Weight | 450kg Approx. |
| Model No. | SSS-B-3000-O |
Designed for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).
NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| Business Type | Manufacturer, Exporter, Supplier |
| View |
|
| Application | Testing Material |
| Display Type | Mechanical |
| Country of Origin | 220V / 380V |
| Power | 1-3kw |
| Driven Type | Electric |
| Total Carbohydrate | 1year |
| Weight | 100-200kg |
| Model No. | SSS-B-3000-H |
| Automation Grade | Manual / Hydraulic |
Designed for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).
NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| Business Type | Manufacturer, Exporter, Supplier |
| View |
|
| Application | Testing Material |
| Display Type | Mechanical |
| Country of Origin | 220V / 380V |
| Power | 1-3kw |
| Driven Type | Electric |
| Total Carbohydrate | 1year |
| Weight | 100-200kg |
| Automation Grade | Manual / Hydraulic |
| Model No. | SSS-B-3000-J |
Designed for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).
NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
